curb-extension proposal

Medium: Adobe InDesign and Illustrator, Procreate (illustration app on Ipad), GIS

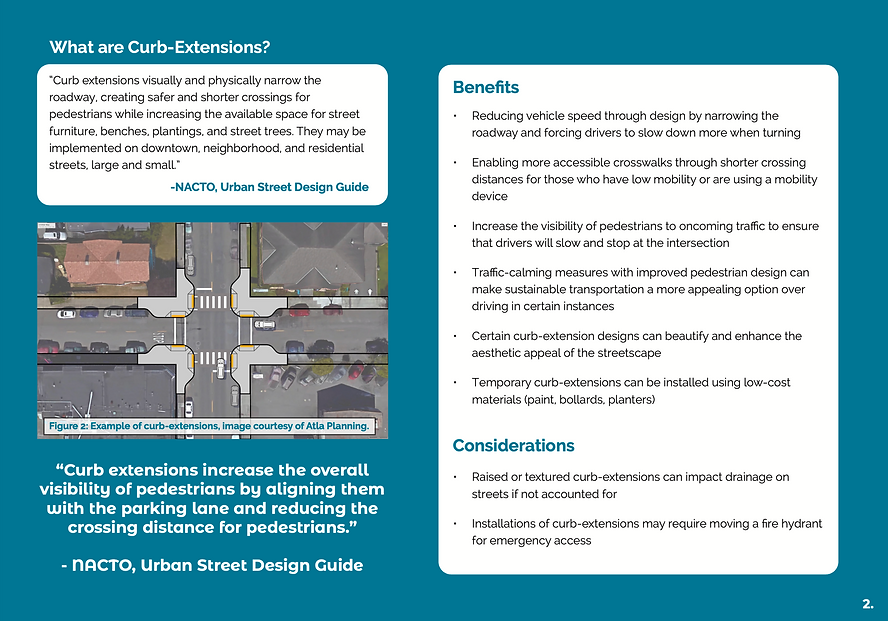

About: This project proposal was submitted to the District of Squamish by OurSquamish Placemaking Society, requesting permission to install temporary painted curb extensions to a particularly problematic crossing Downtown.
Using Adobe Illustrator and Indesign, I integrated the use of a GIS map to demonstrate the dimensions and placement of the extensions as well as Procreate to illustrate what the finished project would look like in the location.
